For Jeep Wrangler JK JKU RUBICON Electric Lock Wiring Harness Axle P5155359
For Jeep Wrangler JK JKU RUBICON Electric Lock Wiring Harness Axle P5155359

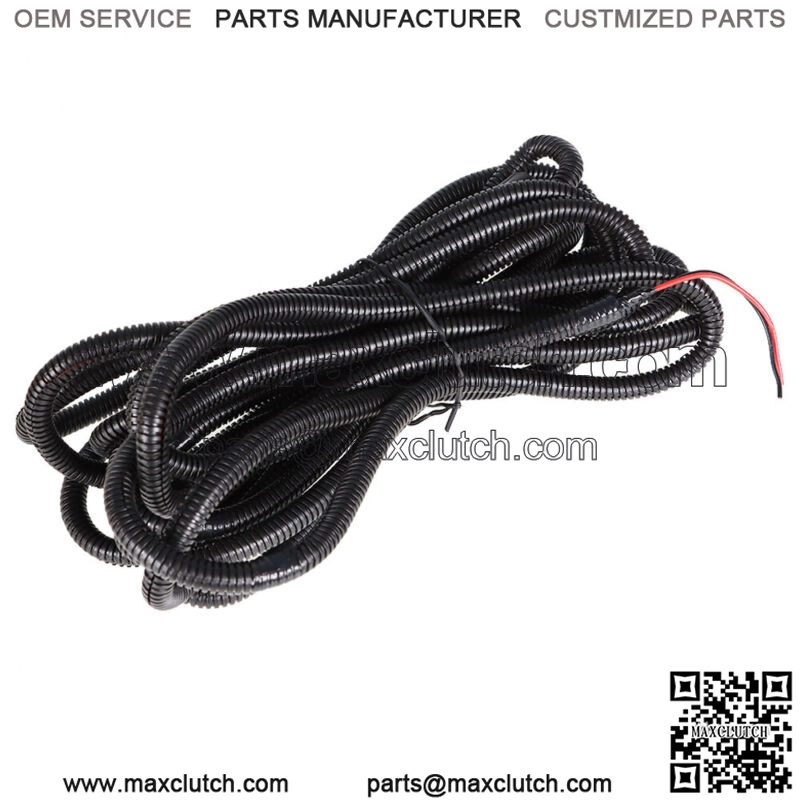

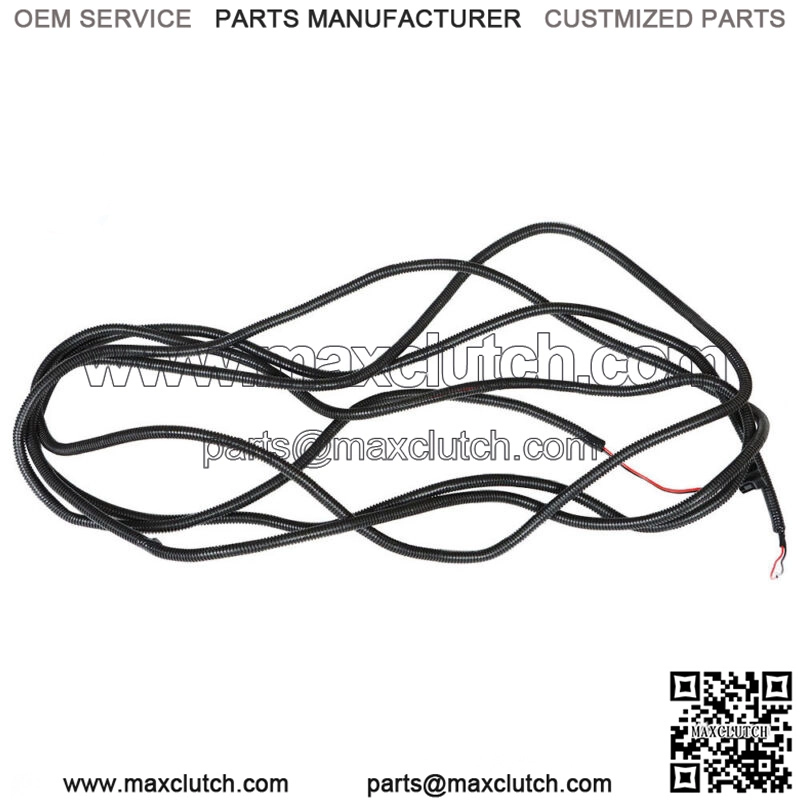

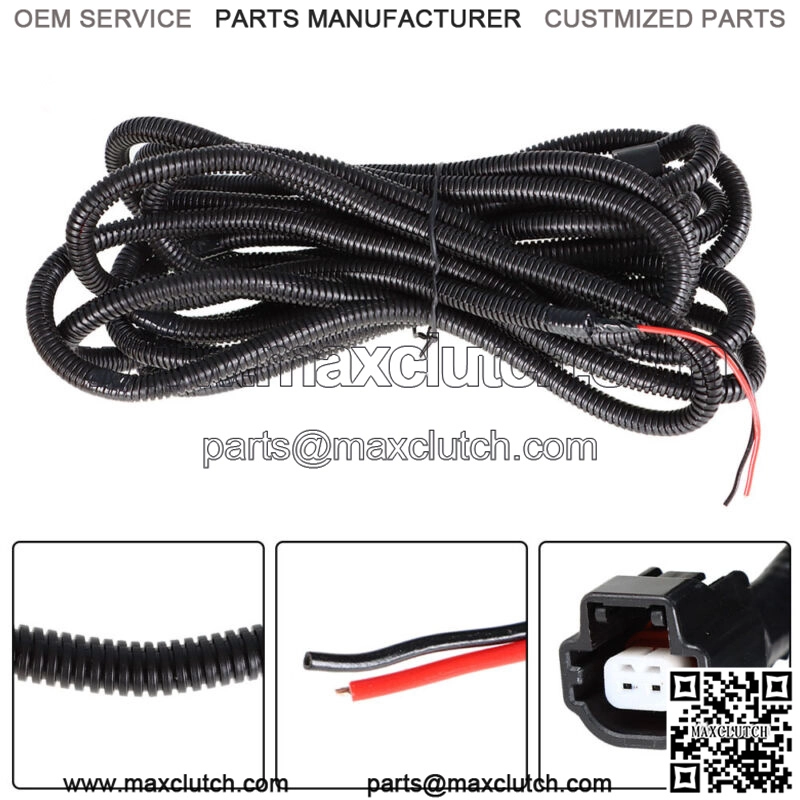

Description: This harness plugs into the electric lock connector (not included) on the Rubicon Dana 44 axle, just over 19 feet of 18 gauge GXL black and red heavy duty automotive wire. It is then shielded with the same length of polyethylene corrugated harness. The wire is rated for -40 C to 125 C and is the same wire used by the factory. And an extra pair of wires to connect to the clutch system light (owner supplied) on the axle housing. Basically, you buy this harness, plug it into the Rubicon Dana 44 axle connector, then hook up a 12v safety switched power source and your electric locks are working. You will need one harness for each axle. You will still need to supply power, a light bulb (LED), and cut the end of the wires coming out of the axle. Installation: For Jeep Wrangler Rubicon Dana 44 axles with electric locks. Wiring harness for axle. Includes: 1 harness with locking connector and an additional pair of wires. Part number: P5155359
